Opening: why measurement matters now
Grid operators and distributed resource owners are increasingly turning to empirical comparisons to set frequency response policies, because anecdote won’t cut it when stability is at stake. Recent deployments of aggregated lithium‑iron‑phosphate (LFP) home batteries show promise for supporting system frequency and voltage, so it is time to map how active and reactive compensation rates perform under realistic conditions. This analysis uses operational metrics and simulation-informed observations to compare compensation behavior for multi‑megawatt LFP aggregations and conventional resources — and it references practical implementations in modern BESS deployments to ground the discussion.
Context and real‑world anchor
Large frequency events such as the Texas February 2021 storm and recurring California peak‑demand episodes have highlighted the need for fast, predictable frequency response. Aggregated residential LFP fleets — configured as multi‑megawatt virtual power plants — are one promising mitigation route. In this context, battery energy storage systems play two primary roles: rapid active power injection/absorption (P) to arrest frequency deviation and reactive support (Q) to maintain voltage stability. These roles are constrained by inverter apparent power limits and state of charge (SoC) boundaries, which must be quantified for operational planning.
Key metrics and methodology
For a data‑driven comparison we focus on a small set of measurable metrics that capture both speed and capacity:
- Participation ratio (droop slope): percentage change in active power per 1% frequency deviation;
- Response time: delay to begin ramping and time-to-peak response (seconds);
- Reactive capacity fraction: portion of inverter apparent power S allocated to Q support without degrading P response;
- SoC‑limited energy margin: available energy (MWh) to sustain active compensation at rated power for a defined duration.
Simulations and field telemetry (where available) are useful: inverter telemetry gives ramp rates and real/reactive splits, while aggregator logs reveal SoC dynamics across a fleet. Industry terms used here include droop control, inverter, reactive power, and state of charge (SoC).
Active vs. reactive compensation: trade‑offs in plain terms
Active power compensation is the primary lever for frequency stabilization — batteries can inject or absorb P almost instantaneously, limited mainly by inverter ramp rate and available SoC. Reactive support, by contrast, is a non‑energy service that relies on the inverter’s ability to supply kvar within its apparent power envelope. The trade‑off is straightforward: allocating more inverter capacity to Q reduces the headroom available for P at the same instant. A steeper droop (higher participation) increases immediate P response but consumes SoC faster — and that reduces sustained response capability during prolonged events.
Empirical patterns from multi‑MW LFP deployments
Across several pilot and commercial projects, three empirical patterns recur: first, aggregated LFP fleets often achieve sub‑second initial response and full ramp within 1–3 seconds, which compares favorably to conventional thermal units. Second, reactive provision tends to be limited to 20–40% of inverter S if full P headroom is to be preserved during contingencies. Third, SoC heterogeneity across residential units dictates available sustained P capacity — fleet management that preserves mid‑range SoC yields the most reliable frequency support.
Operational implications for grid integration
Translating these patterns into operational rules requires clear dispatch logic and contractual clarity. Droop curves should be tuned to local reliability needs: a shallow droop conserves energy but may leave a larger frequency nadir; a steep droop arrests frequency rapidly but can exhaust reserves quickly. Reactive programs are best delivered as scheduled profiles with allowances for short, event‑driven exceptions — that prevents unexpected conflicts with active provision. Effective telemetry and SoC forecasting are therefore essential to avoid overcommitment.
Common implementation mistakes and fixes
Two frequent mistakes are overestimating continuous P capability while ignoring SoC drift, and assuming reactive capacity is free. The fixes are operational rather than theoretical: require live SoC‑aware dispatch algorithms and define firm P/Q prioritization in the grid‑connection agreement. Also run first‑event drills with the actual inverter control firmware and aggregator logic — nothing substitutes for measured response under stress. —
Comparative summary
Compared with synchronous machines, multi‑MW LFP aggregates offer faster initial P response and flexible reactive service, but they are bounded by inverter S and fleet SoC. Where synchronous units provide inertia and steady sustained P, batteries excel in rapid, high‑precision injections. The best outcomes combine both: batteries arrest early deviations while conventional resources supply longer‑duration balancing, reducing overall system risk.
Advisory: three golden rules for evaluating droop control strategies
1) Prioritize measurable performance: require telemetry of response time, droop slope adherence, and SoC evolution during commissioning tests. 2) Specify explicit P/Q arbitration: define how inverters trade off active and reactive duties under different contingencies, and test those scenarios. 3) Use a total‑capacity view: assess inverter S, fleet‑level SoC margins, and realistic sustained duration needs rather than relying on instantaneous peak numbers.

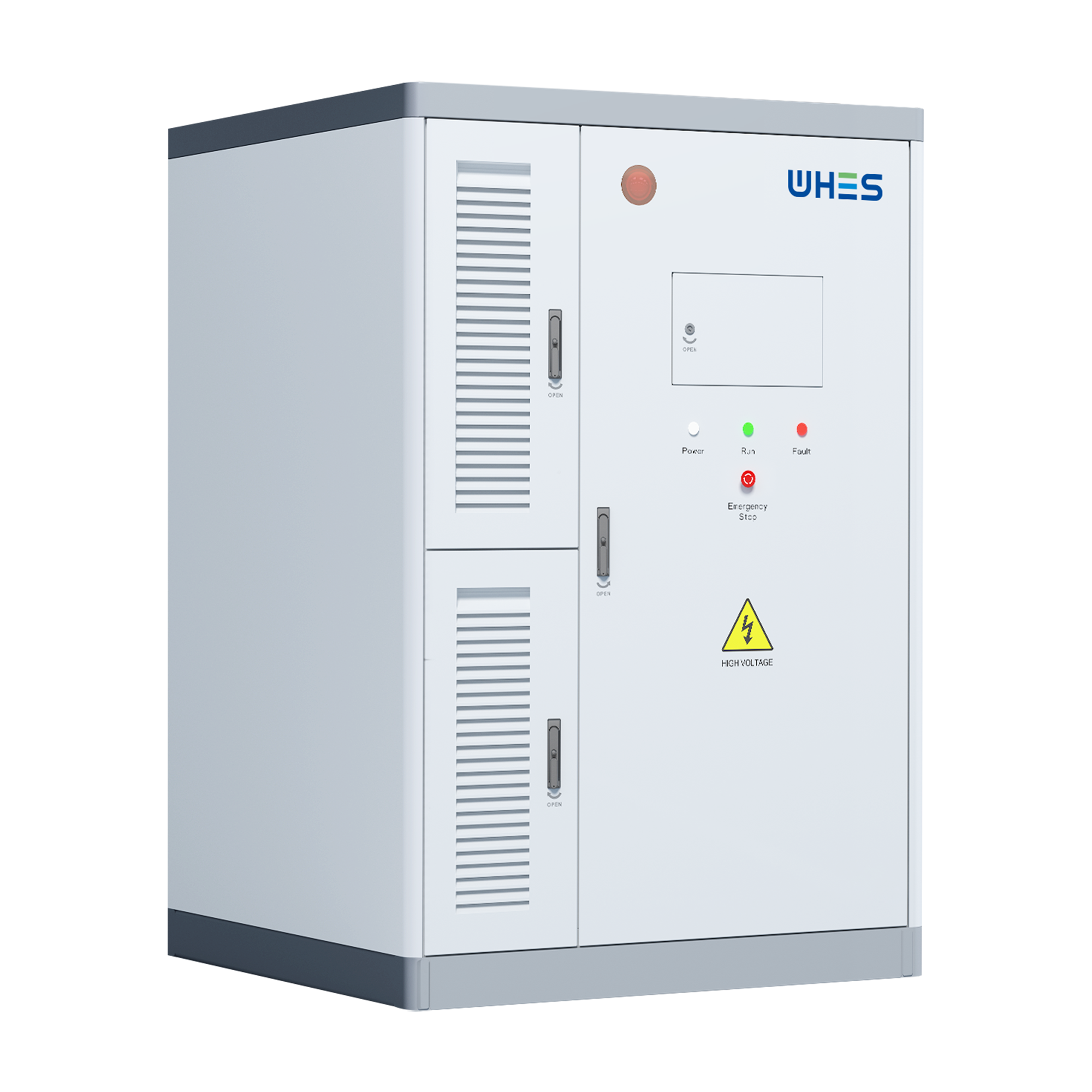

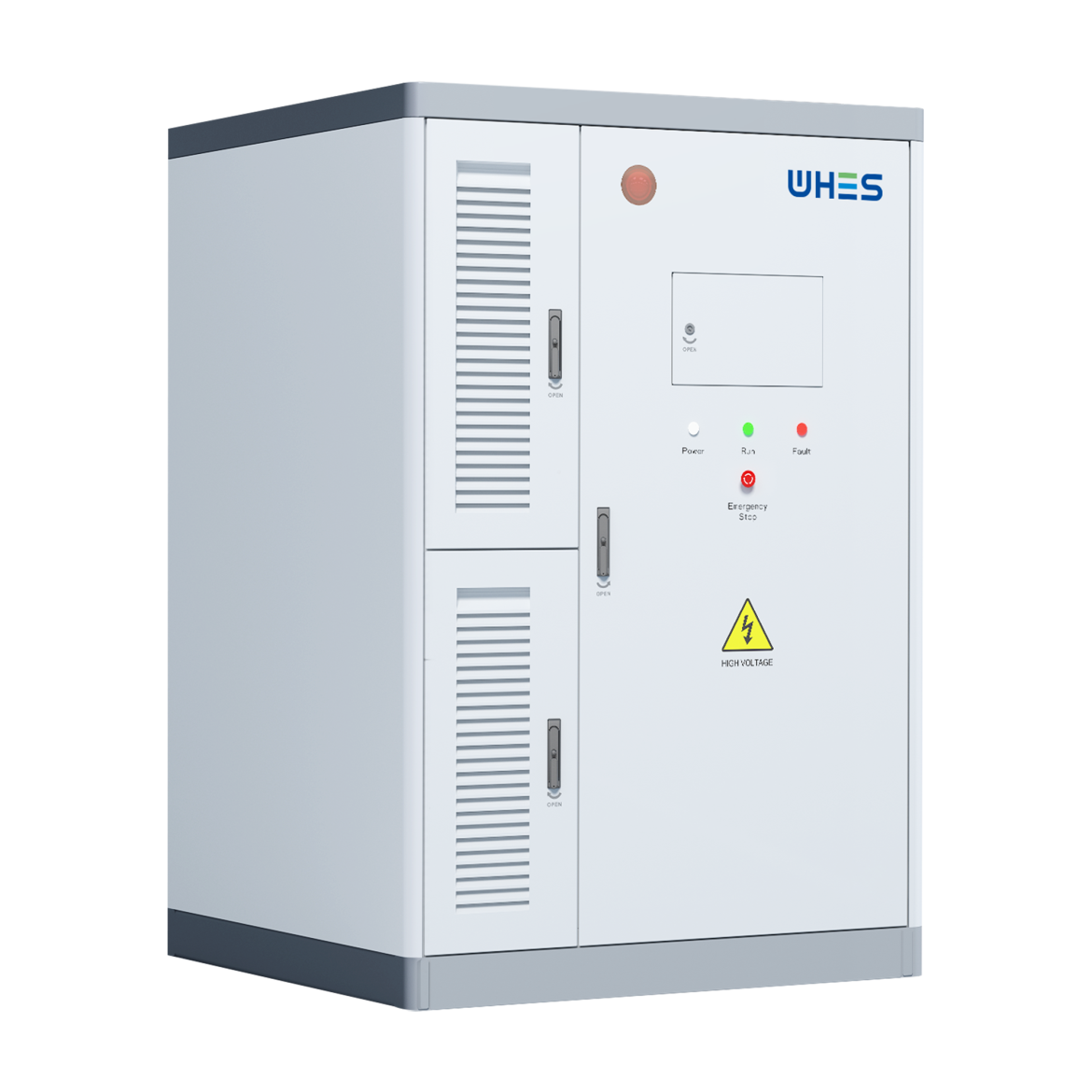

Implementing these rules aligns technical capability with operational expectations — and that is where modern solutions from WHES can deliver value.
Measured resilience.
